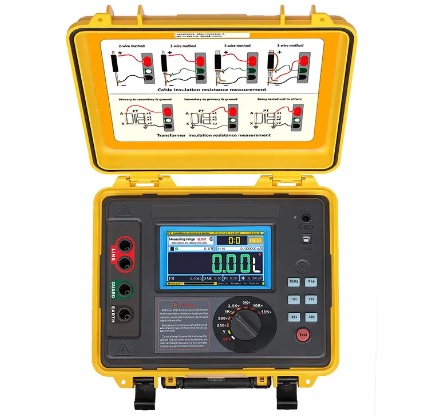

Máy đo điện trở cách điện HV Hipot GD3127

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Máy đo điện trở cách điện HV Hipot GD3127
Thông tin sản phẩm

Máy đo điện trở cách điện HV Hipot GD3127


Specifications

Function Insulation resistance(IR), polarization index(PI), absorption ratio (DAR), ramp(RAMP), filter(FR, 10s, 20s, 30s, 40s 4 choices), voltage(V), current(nA)
Power supply Rechargeable lithium battery 5.2Ah
Rated voltage GD3127: 250V, 500V, 1kV, 2.5kV, 5kV
GD3127B: 250V, 500V, 1kV, 2.5kV, 5kV, 10kV
Output voltage accuracy (5%-10%) ±10V
Insulation resistance measuring range GD3127: 0.50MΩ~2.00TΩ
GD3127B: 0.50MΩ~5.00TΩ
Short circuit current >5mA
Polarization index(PI) Yes
Absorption ratio (DAR) Yes
Ramp(RAMP) test mode Test in steps of 10% of the preset voltage until the preset voltage
Filter test mode Four choices of 10S, 20S, 30S, 40S
Voltage test Range: AC/DC 0V-1000V, accuracy:±5%rdg±3V
Current test Range: 0.01nA-7mA, accuracy:±5%rdg±0.5nA
Voltage monitor Monitor the voltage of the tested object, monitor the discharge state after the test, and prohibit the test when the voltage is greater than 36V, protect the instrument and the operator
Test timer Automatically record test time, timing range: 0s~9999s
Storage Automatic storage of test data with date and time, a total of 1000 groups
Communication Upload the stored test data to the computer through the USB communication line.
Battery  There is a battery level display, reminding to charge in time when the battery voltage is low
Auto power off function Auto power off after 15 minutes
Protection class IP65/IP40
Insulation resistance 50MΩ(1000V) (between test circuit and shell)
Withstand voltage AC 3kV 50Hz 1min (between test circuit and shell)
Standards IEC61010-1, IEC61326-1
Working temperature and humidity - 20℃ ~ + 50℃   < 80%RH
Storage temperature and humidity - 25℃ ~ + 65℃  < 80%RH
Power Supply 220V AC 50Hz
Dimension (mm) 280 (L)*260(W)*160(H)
Weight 4400g(include battery)
