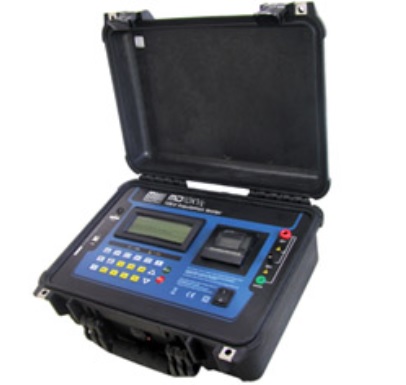

Test voltage
500 V, 1000 V, 5000 V, 10000 V directly, one button selectable. 500 V to 10 kV in 25 V, 100 V or 500 V steps. DC, negative.
Maximum resistance reading
10 TΩ @ 5 kV up to 10 kV.
5 TΩ @ 1 kV up to 4.99 kV.
1 TΩ @ 525 V up to 999 V.
500 GΩ @ 500 V.
DC voltmeter
15 V up to 600 Vdc.
Accuracy: ±(5% of reading + 3 digits).
AC voltmeter
15 V up to 600 Vrms.
Accuracy: ±(5% of reading + 3 digits).
Overvoltage category
CAT. III - 600 V.
Leakage current measurement
1 nA up to 1500 µA
±(10% of reading + 3 digits).
Capacitance measurement
50 nF up to 10 µF @ 500 V.
50 nF up to 5 µF @ 1,000 V.
30 nF up to 2 µF @ 2,500 V.
30 nF up to 1 µF @ 5,000 V.
30 nF up to 680 nF @ 10,000 V.
Accuracy: ±10% of reading ± 3 digits.
Short circuit
Max. 2 mA.
Display
Digital and bargraph reading.
Test voltages accuracy
± 3% of nominal test voltages on 10 GΩ.
Insulation tester basic accuracy
± 5% of reading from 1 MΩ to 1 TΩ @ 10 kV.
± 20% of reading from 1 TΩ to 10 TΩ @ 10 kV.
(for lower test voltages, the upper limit will be reduced proportionally)
± 20% of reading ± 5 digits from 10 kΩ to 100 kΩ.
± 10% of reading ± 5 digits from 100 kΩ to 1 MΩ.
Advanced Features
• Automated Polarization Index calculation.
• Automated Dielectric Absorption Ratio calculation.
• Programmable Pass-Fail test.
• Step Voltage Test.
• 4000 Readings memory.
• Switchable filter to remove external noise interference.
Built-in printer
Prints elapsed time, actual voltage and resistance measured each 15 seconds.
Data output
USB.
Built-in chronometer
Shows elapsed time in mm:ss format. Count starts automatically for each measurement.
MegaLogg2 Software
Friendly, easy to use software. Tests are represented in graphic and tabular views. With automatic report generator, including the operator's commentaries.
Environmental protection
IP54 (with closed lid).
Safety class
In accordance with IEC 61010-1.
E.M.C.
In accordance with IEC 61326-1.
Electromagnetic irradiation immunity
In accordance with IEC 61000-4-3.
Electrostatic immunity
In accordance with IEC 61000-4-2.
Power supply
Internal rechargeable battery 12 V - 6 Ah.
Battery charger
AC adapter 12 V - 2 A.
Operating temperature range
-5°C to 50°C.
Storage temperature range
-25°C to 70°C.
Humidity range
95% HRA (non condensing).
Equipment weight
Approx. 6.3 kg.
Dimension
406 x 330 x 174 mm.
