| Insulation Range |
Insulation Resistance: 0.1Ω - 2000 MΩ (0.1Ω -1000 MΩ for MJ160)
Accuracy: ±1.25% of fsd on a 2.8 in. (71.1mm) arc length |
| Nominal Test Voltages |
d.c: 100 V, 250 V, 500 V, 1000 V.
(MJ160 is 50 V, 100 V, 250 V, 500 V) |
| Accuracy |
250 V, 500 V, 1000 V +30%, -0% max.
50 V, 100 V, +40%, -0% max.
Midscale: 4 MΩ (2 MΩ for MJ160)
Short Circuit Current: 1.9 mA
(0.65 mA for MJ160)
Maximum Load Capacitance:
1μF with less than ±0.1" pointer movement
Discharge: Up to 1μF capacitance is discharged from 1000 V to less than 42.4 V in less than 4 secs
Resistance Range:0.1 ? - 5000 ? |
| Test Voltage Characteristics |
Open circuit Test
voltage: 3 V ±0.2 V
Short Circuit Current: 2 mA ±10%
Accuracy:
±1.25% of fsd on a 2.8 in. (71.1mm) arc length: |
| Safety Voltage Check |
Voltage measurement: 0.1 V - 600 V a.c; the meter is RMS calibrated and average responding
Safety voltage indicator: Indicates the presence of d.c. voltages.
Scaling is not the same as the a.c. meter. True d.c. voltage equals
scale reading divided by 2.22
Accuracy: 2.5% of full scale |
| Power Supplies |

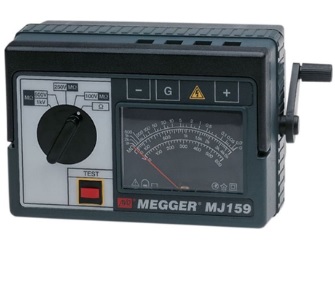

MJ159 and MJ160: Low voltage brushless a.c. generator. Cranking speed between 130 rpm and 170 rpm
MJ359: Dual operation low voltage brushless a.c. generator or 120
V 50/60 Hz mains (line) supply
MJ459: Six IEC LR6 cells (AA) Battery life: not less than 1300
insulation or Resistance range tests
MJ559: Dual operation 120 V 50/60 Hz mains (line) supply and rechargeable battery. Six Ni Cad cells (e.g. AA, NEDA 15 NC) |
