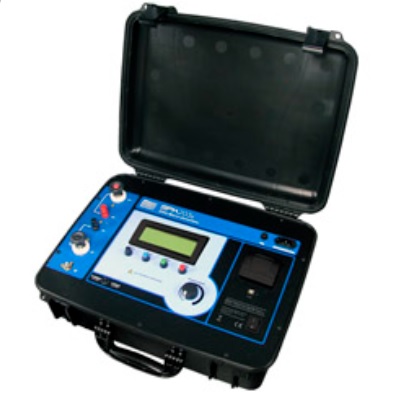

Máy đo điện trở tiếp xúc MEGABRAS MPK203x micro-ohmmeter

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo điện trở tiếp xúc MEGABRAS MPK203x micro-ohmmeter

Thông tin sản phẩm

Máy đo điện trở tiếp xúc MEGABRAS MPK203x micro-ohmmeter


Test currents

100 A, 200 A (True DC).
The current may be continuously adjustable from 0 to 100 %.

Resistance ranges

0 up to 2000 µΩ (test current: up to 200 A).
0 up to 20 mΩ (test current: up to 100 A).

Reading resolution

0.1 µΩ from 0 up to 2000 µΩ.
1 µΩ from 2 mΩ up to 20 mΩ.

Output voltage

3.5 Vdc @ 200 A.
4.5 Vdc @ 100 A.
5.8 Vdc (without load).

Maximum load resistance

10 mΩ @ 200 A.
30 mΩ @ 100 A.

Measurement principle

Four-terminal, U/I.

Thermal protection

Protects all sensitive components, avoiding any damage due to overheating.

Continuous operation time

At 200 A this equipment may be used continuously for approx. 3 minutes before the thermal protection activates.
At 100 A this equipment may be used continuously for approx. 15 minutes before the thermal protection activates.

Basic accuracy

2000 µΩ range:
± 0.5 % of reading ± 2 digits from 200.0 µΩ up to 1999.9 µΩ.
± 1 % of reading ± 2 digits from 0 up to 199.9 µΩ.

20 mΩ range:
± 0.5 % of reading ± 2 digits from 2.000 mΩ up to 20.000 mΩ.
± 2 % of reading ± 2 digits from 0 up to 1999.9 µΩ.

Advanced features

Digital direct reading of very low resistances in the alphanumerical display, with up to 4½ digits. Very fast and accurate measurements.

Built memory

It allows the storage of 200 tests readings.

Interface

USB for download the stored values.

Enviromental

IP54 with closed lid.

Safety class

Meets the requirements of IEC 61010-1.

Power supply

Mains: 220 - 240 V~.

Operating temperature range

-5 °C to +50 °C.

Storage temperature range

-25 °C to +70 °C.

Humidity range

95 % RH (non condensing).

Equipment weight

Approx. 11 kg.

Dimension

502 x 394 x 190 mm.

Accessories weight

Approx. 20.5 kg.
