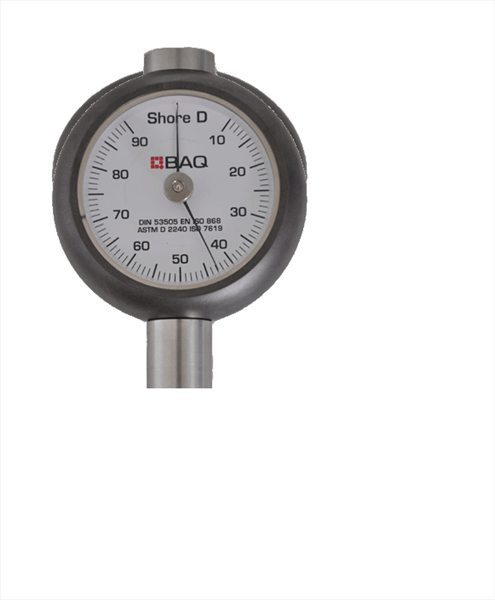

Analogue display for all shore scales
Watch glass; Resistant to scratches and discolouration
Robust housing made of anodized aluminum
Can be used in any direction
Complies with the standards DIN 53505, ASTM D 2240
Maximum is displayed, toggle pointer
Measuring stand as an option
| Technical specifications |
| Hardness tester for |
Shore A, D |
| display |
Hardness values in Shore |
|
Display area
|
10 - 90 |
| Scale division |
1 |
| error limit |
± 0.5
|
| Maximum display |
by drag-and-drop |
| Pointer stroke |
0 ° - 360 ° |
| Watch diameter |
70mm |
| Diameter of supporting surface |
18mm |
| Length under cylinder |
32mm |
| weight |
285g |
