| Technical Specification |
| Model |

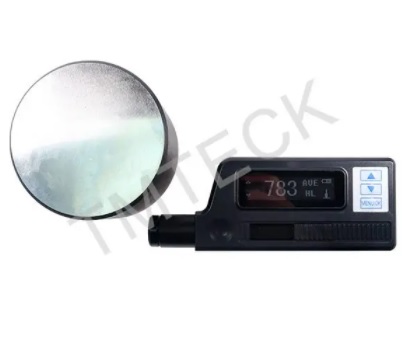

THL270 |
| Impact device |
D integrated |
| Hardness scales |
HLD, HB, HRC, HRB, HV, HS |
| Accuracy |
±4HLD(760 ±30HLD) |
| Memory |
600 units |
| Output |
USB |
| Average Surface Roughness of Work piece |
1 .6 μ ( Ra) |
| Max. Work piece Hardness |
900HLD |
| Min. radius of Work piece (convex/concave) |
Rmin = 50mm (with support ring Rmin= 10mm) |
| Min. Work piece weight |
2~5kg on stable support 0.05~2kg with compact coupling |
| Min. Work piece thickness coupled |
5mm |
| Min. Thickness of hardened layers |
0.8mm |
| Indentation depth |
Impact Devices data |
| Continuous working time |
60(without backlight) |
| Power |
Li battery |
| Operating temperature |
0~40℃ |
| Overall dimensions |
155mm×60mm×23mm |
| Weight |
200 g |
