- Easy switching of the commercial power frequency (50Hz or 60Hz).

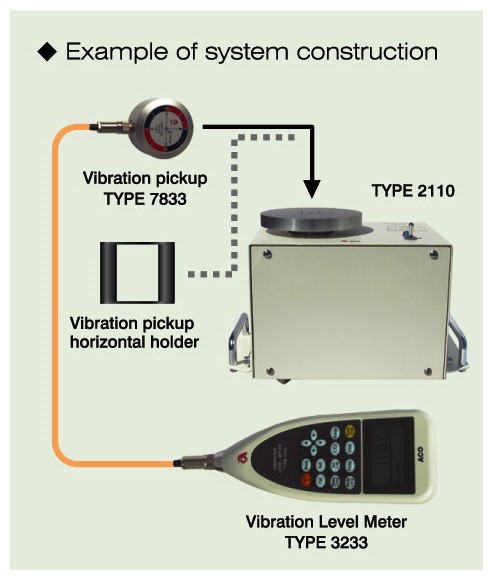

- Calibration in horizontal direction is possible using pickup holder
- TYPE 2110 Vibration Calibrator offers highly accurate calibration for vibration pickups with the weight of 10-500g.
- TYPE 2110 is a calibrator for maintenance and of the level meters.
Thông số kỹ thuật
- Vibration excitation level : 97dB (0dB=10-5m/s²) ±0.5dB
- Vibration excitation frequency : 6.3Hz+/-3%
- Maximum allowable weight : 2.6kg
- Acceleration wave distortion : 5% max
- Vibration table diameter : φ130
- Operating temperature : 15～35℃ 90% max
- Power source : AC100V (50Hz/60Hz switching)
- Dimension : Approx.305(W)×183(D)×211(H)
- Weight : Approx.20kg
