| Measurement Specifications |
| Measurement Range |
| Acceleration |
0.02 to 200 m/s2 RMS |
| Velocity |
0.02 to 200mm/s RMS |
| Displacement |
2 to 2000 m EQp-p |
|
| Frequency Range |
| Acceleration |
3Hz to 10kHz |
| Velocity |
10Hz to 1kHz (Compliant with JIS B0907-1989) |
| Displacement |
10 to 400Hz |
|
| Parameters |
RMS, Peak, EQ Peak, EQ Peak-to-Peak |
| General Specifications |
| Interface |
RS232C |
| Output |
| AC Output |
1Vrms (Full Scale) |
| Headphone Output |
Portable Headphones w/Volume function |
|
| Operating Environment |
-10 to 50°C, 30 to 90%RH with no condensation |
| Power Supply |
2 x AAA batteries or AC adapter |
| Dimensions |
5.7″(H)x1.9″(W)x0.9″(D) Case is 12″x18″x3″ (8lbs) |
| Weight |
3.0lbs (136 g) |
| Warranty |
1 year |
| What’s Included |

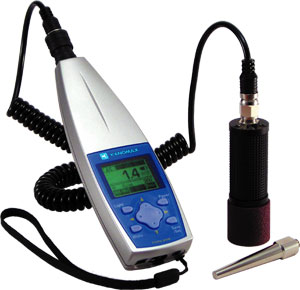

Meter, Operation manual, Accelerometer with cable and magnet, Contact pin, 2 x AAA batteries, Carrying case, Calibration certificate |
