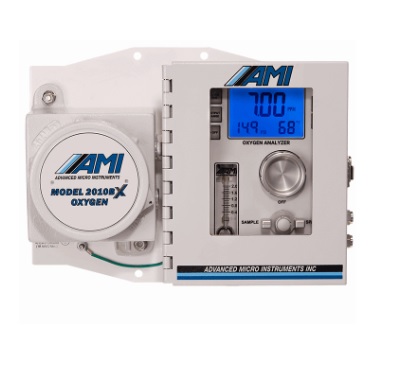

Máy đo khí Oxy O2 AMI MODEL 2010BX

Máy đo khí Oxy O2 AMI MODEL 2010BX

Máy đo khí Oxy O2 AMI MODEL 2010BX

Operational Specifications

OUTPUT RANGES (USER SELECTABLE)		AMBIENT OPERATIONAL TEMPERATURE
		NON-HEATED	HEATED	HEATED WITH EXTREME WEATHER ENCLOSURE
0 – 10 ppm 0 – 50 ppm 0 – 100 ppm 0 – 500 ppm 0 – 1000 ppm0 – 5000 ppm 0 – 1.0% 0 – 5.0% 0 – 10.0% 0 – 25.0%		25°F to 115°F (–3.9°C to 46°C)	–20°F to 115°F (–29°C to 46°C)	–40°F to 115°F (–40°C to 46°C)

FLOW RATE (RECOMMENDED)	INLET GAS PRESSURE	OPERATIONAL ALTITUDE
		DC	AC
0.1 to 2.0 SCFH (0.05 – 1.0 Lpm)	0.5 − 150 psig (0.03 − 10.3 bar)	≤ 5,500 m (18,000 ft)	≤ 2,500 m (8,200 ft)

Sensor & Analyzer Performance Specifications

T-2 SENSOR	T-4 SENSOR	90% UPSCALE RESPONSE TIMES FOR SPECIFIC RANGES		REPEATABILITY	ACCURACY
Max Range 0 –10,000 ppm Special Conditions <10 ppm H2S, 100% CO2	Max Range 0 –10,000 ppm Special Conditions <500 ppm H2S, 100% CO2	<25 sec for 0.0 – 10 ppm	<10 sec for 10 ppm – 25.0%	±1% of range or ±0.2 ppm of oxygen, whichever is greater	±1% of full scale range at constant conditions
