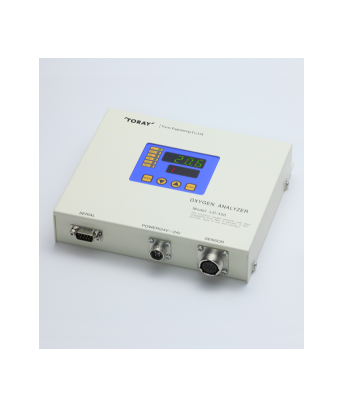

The LC-450A is a compact oxygen analyzer designed for monitoring oxygen content from low ppm range up to 100% Volume Oxygen. This analyzer uses a specially treated oxygen sensor for increased durability, high precision and long life. This compact analyzer is easily mounted in tools for the manufacturing of semiconductor and liquid crystal devices.
| Type |
Portable / Panel Mounted |
| Display system |
Digital 4 Digits (Concentration Display) |
| Measurement range |
0.1ppm?100vol%O2
Display: Auto range or 4 Ranges
Recorder: 0-10/100/1000ppm/100%
Available for any combination of the following
ranges.
1/10/100/1000/10000ppm
1/10/100%, 10-20-10-0atm
? 1ppm range and atm range is the reference value
(No guarantee) |
| Sampling system |
Continuous Suction by Built-in Pump |
| Supply gas |
Approx. 1.5L/min |
| Gas sensor |
60±10mL/min |
| Gas connection |
INLET(Sample gas inlet) Rc1/4
BYPASSOUT(Bypass outlet) Rc1/4
OUTLET(Sample gas outlet) Rc1/4 |
| Recorder output |
External output: DC 0-10 V
DC 4-20 mA
Range marker: BCD, 3 contact outputs (Contact capacity: DC 24 V, 0.3 A) |
| Reference Gas |
Atmospheric Gas |
| Dimensions |
210(W)×134(H)×300(D) |
| Weight |
Approx. 6kg |
| Color |
Mat Coating(Black) |
| Power supply |
100?240VAC (35VA, Stationary time) |
