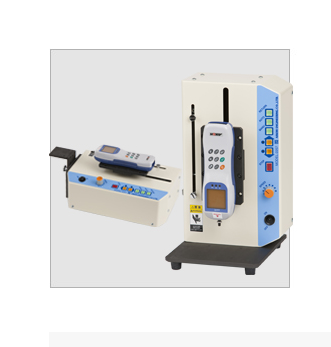

Máy đo lực kéo nén 2257 Aikoh

Mã sản phẩm: 2257 |
Thương hiệu: Aikoh
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Máy đo lực kéo nén
Model: 2257
Hãng: Aikoh

Thông tin sản phẩm
・A vertical & horizontal motorized stand for force gages.
・One unit can handle diversified tests.
・The use of a stand control cable enables the unit to be stopped at a set force value. (Optional

Apply


Tensile & compression tests
3-point bending test
Joint strength test
Pull-out & peeling test


Thông số kỹ thuật


Model MODEL-2257
Max. force 500N(50kgf)
Controller Built in
Test speed 10 - 200mm/min
Speed changing Variable resistor
Stroke 150mm
Distance between test center and column 49mm
Table size Vertical: W200 x D120 mm
Horizontal: W70 x D60 mm
Drive motor DC speed control motor
Dimensions W215×H380×D235mm(vertical)
Stand mass Approx. 20kg
Power supply Single phase 100 – 240 VAC, 0.5 A
Options Force gage, jig/fixture, cable, jig mounting plate OJ-P-90 (for tensile test)
