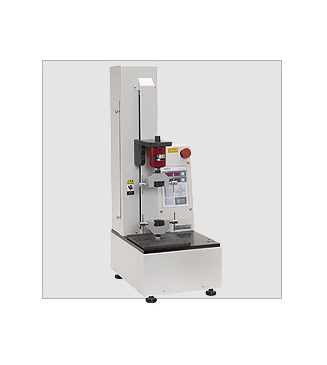

Máy đo lực kéo nén FTN1-13A Aikoh

Mã sản phẩm: FTN1-13A |
Thương hiệu: Aikoh
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Máy đo lực kéo nén
Model: FTN1-13A
Hãng: Aikoh

Thông tin sản phẩm
- Displacement resolution 0.01 mm.
- Most suitable for testing small parts.
- A desktop force tester.
- Most suitable for strength evaluation test.
- Dedicated PC software included (control & data acquisition).
- Up to three load cells can be used.


Thông số kỹ thuật


Model MODEL-FTN1-13A
Max. force 500N(50kgf) 2KN(200kgf)
Force accuracy Depends on the load cell used.
Force measuring amplifier Built in
Controller Built in
Test speed 5 - 300mm/min 5 - 125mm/min
Speed changing Numeric input (Settable on the PC)
Stroke 422mm
Distance between test center and column 100mm
Table size W174×D200mm
Drive motor Stepping motor
Detector Rotary encoder
Display accuracy ±0.1mm
Dimensions W300×D400×H823mm
Stand mass Approx. 40 kg
Power supply Single phase, 100VAC - 240VAC 3A
Standard set Tester, load cell(3000 Series or UP Series) 1 piece, free download version software FTN-3000
Options Additional load cell, jig/fixture, paid software FTN-3001
