Máy đo lực kéo nén Mark-10 ESM1500, EMS1500S

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

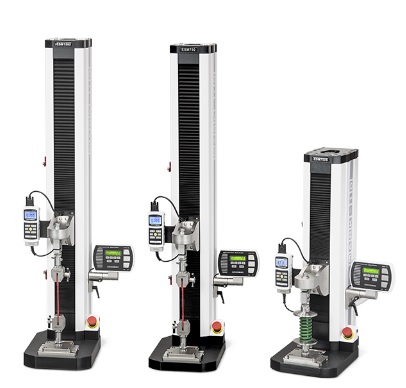

Máy đo lực kéo nén Mark-10 ESM1500, EMS1500S

Máy đo lực kéo nén Mark-10, Máy đo momen xoắn Mark-10

Thông tin sản phẩm

Máy đo lực kéo nén Mark-10 ESM1500, EMS1500S



ESM1500 ESM1500S ESM750 ESM750S
Load capacity: 1,500 lbF [6.7 kN] at < 60 in [1,525 mm]/min
1,000 lbF [4.5 kN] at > 60 in [1,525 mm]/min
750 lbF [3.4 kN] at < 35 in [900 mm]/min
500 lbF [2.3 kN] at > 35 in [900 mm]/min
Maximum travel distance: 32.0 in [813 mm] 14.2 in [360 mm] 32.0 in [813 mm] 14.2 in [360 mm]
Standard speed range: 0.5 - 24 in/min [10 - 600 mm/min]
Available speed range: 0.001 - 90 in/min [0.02 - 2,300 mm/min] 0.001 - 60 in/min [0.02 - 1,525 mm/min]
Speed setting accuracy: ±0.2% of setting
Speed variation with load: ±0% [stepper motor driven]
Travel accuracy*: ±0.002 in. per 10 in. [±0.05 mm per 250 mm]
Travel resolution: 0.001 in [0.02 mm]
Limit switch repeatability: ±0.001 in [0.03 mm]
Power: Universal input 80-240 VAC,
50/60 Hz, 450W
Universal input 80-240 VAC,
50/60 Hz, 120 W
Weight: 198 lb [90 kg] 160 lb [72 kg] 185 lb [84 kg] 150 lb [68 kg]
Shipping weight: 248 lb [113 kg] 206 lb [93 kg] 236 lb [107 kg] 196 lb [88 kg]
Warranty: 3 years [see individual statement for further details]
Conformance: CE mark
