| Model |

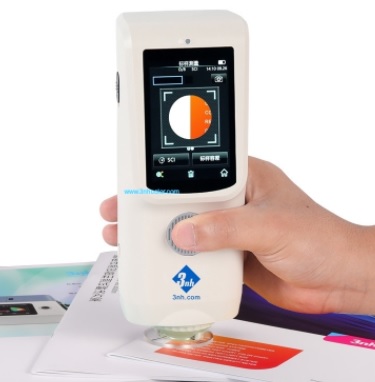

TS7036 |
| Optical Geometry |
D/8(diffused illumination, 8-degree viewing angle) |
| SCI/SCE Mode |
| Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Characteristic |
double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating Sphere Size |
Φ40mm |
| Light Source |
Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode |
Flat Grating |
| Senso |
Silicon photodiode array (double row 32 groups) |
| Wavelength Range |
400～700nm |
| Wavelength Interval |
10nm |
| Semiband Width |
10nm |
| Measured Reflectance Range |
L:0~120; reflectivity:0~200% |
| Measuring Aperture |
Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| Specular Component |
SCI/SCE |
| Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2) |
| Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index |
WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), |
| Metamerism Index MI, |
| Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search |
| Observer Angle |
2°/10° |
| Illuminant |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy |
0.01 |
| Measuring Time |
About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability |
Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error |
MAV/SCI, Within ΔE*ab 0.3
(Average for 12 BCRA Series II color tiles) |
| Measurement Mode |
Single Measurement, Average Measurement(2-99times) |
| Locating Method |
Camera Locating,stabilizer cross position |
| Dimension |
L*W*H=81X71X214mm |
| Weight |
About 460g |
| Battery |
Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span |
5 years, more than 3 million times measurements |
| Display |
3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port |
USB,Bluetooth 5.0 |
| Data Storage |
Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE) |
| Language |
Simplified Chinese, English, Traditional Chinese |
| Operating Environment |
0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment |
-20~50℃, 0~85%RH (no condensing) |
| Standard Accessory |
Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture |
| Optional Accessory |
USB Micro Printer, Powder Test Box,Bluetooth Micro Printer |
| Notes |
Technical parameters are only for reference, subject to the actual sale of the product |
