Model
|

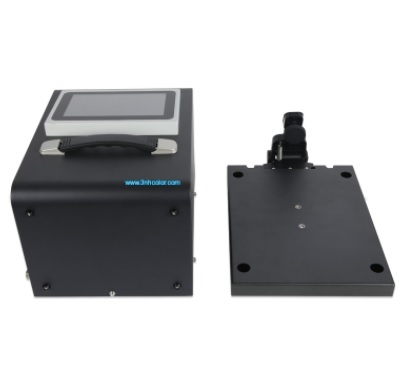

TS8210 portable benchtop spectrophotometer
|
|
Optical Geometry
|
D/8(diffused illumination, 8-degree viewing angle)
|
|
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
|
|
Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
|
|
Characteristic
|
Customized aperture,good for horizontal or vertical measurement, wider adaptability;
|
|
|
Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries;
|
|
Integrating Sphere Size
|
Φ40mm
|
|
Light Source
|
Combined full spectrum LED light source
|
|
Spectrophotometric Mode
|
Flat Grating
|
|
Sensors
|
Silicon photodiode array (double row 40 groups)
|
|
Wavelength Range
|
400~700nm
|
|
Wavelength Interval
|
10nm
|
|
Semiband Width
|
10nm
|
|
Measured Reflectance Range
|
0~200%
|
|
Measuring Aperture
|
Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
|
|
Specular Component
|
SCI/SCE
|
|
Color Space
|
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
|
|
Color Difference Formula
|
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
|
|
Other Colorimetric Index
|
WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
|
|
YI(ASTM D1925,ASTM 313),
|
|
Staining Fastness, Color Fastness, Color Strength, Opacity
|
|
8° Glossiness,555 tone classification
|
|
Observer Angle
|
2°/10°
|
|
Illuminant
|
D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
|
|
Displayed Data
|
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
|
|
Measuring Time
|
About 1.5s (Measure SCI & SCE about 3.2s)
|
|
Repeatability
|
Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
|
|
Inter-instrument Error
|
MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)
|
|
Measurement Mode
|
Single Measurement, Average Measurement(2-99times)
|
|
Locating Method
|
Camera Locating
|
|
Dimension
|
L*W*H=370X240X260mm
|
