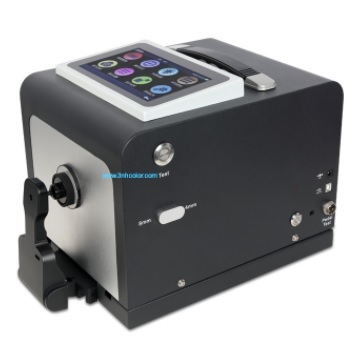

Model
|
TS8450
|
|
Optical Geometry
|
45/0(45 ring-shaped illumination, 0 degree viewing angle)
|
|
Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
|
|
Characteristic
|
Enhanced version spectrophotometer, Customized single aperture Φ18/8/4 mm diameter aperture, used in laboratory accurate analysis and transmission;
|
|
Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be used for fluorescence sample measurement.
|
|
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
|
|
Integrating Sphere Size
|
Φ40mm
|
|
Light Source
|
Combined full spectrum LED light source, UV light source
|
|
Spectrophotometric Mode
|
Flat Grating
|
|
Sensors
|
Silicon photodiode array (double row 40 groups)
|
|
Wavelength Range
|
400~700nm
|
|
Wavelength Interval
|
10nm
|
|
Semiband Width
|
10nm
|
|
Measured Reflectance Range
|
0~200%
|
|
Measuring Aperture
|
Customized single aperture,LAV:Φ18mm/Φ20mm;MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
|
|
Specular Component
|
45/0
|
|
Color Space
|
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
|
|
Color Difference Formula
|
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
|
|
Other Colorimetric Index
|
WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
|
|
YI(ASTM D1925,ASTM 313),
|
|
Metamerism Index MI,
|
|
Staining Fastness, Color Fastness, Color Strength, Opacity
|
|
8° Glossiness,555 tone classification
|
|
Observer Angle
|
2°/10°
|
|
Illuminant
|
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
|
|
Displayed Data
|
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
|
|
Measuring Time
|
About 1.8s
|
|
Repeatability
|
Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
|
|
Inter-instrument Error
|
MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
|
|
Measurement Mode
|
Single Measurement, Average Measurement(2-99times)
|
|
Locating Method
|
/
|
|
Dimension
|
L*W*H=370X240X260mm
|
|
Weight
|
About 7.8kg
|
|
Battery
|
AC 24V, 3A Power adapter power supply
|
|
Illuminant Life Span
|
5 years, more than 3 million times measurements
|
|
Display
|
7-inch TFT color LCD, Capacitive Touch Screen
|
|
Data Port
|
USB, Bluetooth ®5.0, trigger switch interface
|
|
Data Storage
|
Standard 1000 Pcs, Sample 30000 Pcs
|
|
Language
|
Simplified Chinese, English, Traditional Chinese
|
|
Operating Environment
|
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
|
|
Storage Environment
|
-20~50℃, 0~85%RH (no condensing)
|
|
Standard Accessory
|
Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)
|
|
Optional Accessory
|
Micro Printer, Foot Switch, Rotating Bracket
|
|
Notes
|
Technical parameters are only for reference, subject to the actual sale of the product
|
