| Model |

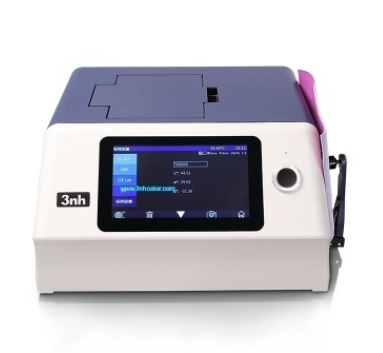

YS6020(Pulsed xenon lamp) |
| Optical Geometry |
Reflectance: d/8 (SCI⪰ Include UV/Exclude UV)
Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003)
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
| Integrating Sphere Size |
Φ 154mm |
| Light Source Device |
360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp |
| Spectrophotometric Mode |
Concave Grating |
| Sensor |
256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range |
360-780nm |
| Wavelength Pitch |
10nm |
| Semiband Width |
5nm |
| Reflectance Range |
0~200% |
| Measuring Aperture |
Reflective: Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive: Φ30mm/Φ25.4mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position |
| Specular Component |
Reflectance: SCI&SCE
Transmittance: SCI&SCE |
| Color Space |
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy |
| Color Difference Formula |
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99 |
| Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) |
| Observer Angle |
2° & 10° |
| Illuminants |
D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Displayed Data |
Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measuring Time |
About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.07% (400 nm to 700 nm: within 0.06%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.07% (400 nm to 700 nm: within 0.07%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.018 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error |
Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles) |
| Size |
370×300×200mm |
| Weight |
About 9.6kg |
| Power Supply |
DC 24V, 3A Power Adapter |
| Light Source Device Life |
5 years, more than 3 million times measurements. |
| Display |
7" TFT Capacitive Screen-touch Display |
| Data Port |
USB & Print serial port |
| Data Storage |
Standard 2000 Pcs, Sample 20000 Pcs |
| Language |
Simplified Chinese, Traditional Chinese, English, |
| Working Environment |
Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment |
Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory |
Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber, |
| Optional Accessory |
Micro-printer, Transmissive Test Clamp Component,Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes: The specifications are subject to change without notice. |
