Thông tin sản phẩm

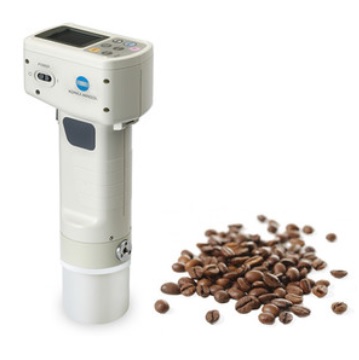

Máy đo màu Konica Minolta Chroma Meters CR-410C
Model
CR-410 Head
Illuminating/viewing system
Wide-area illumination:0° viewing angle; specular component included
Detector
Silicon photocells (6)
Display range
Y: 0.01% to 160.00% (reflectance)
Light source
Pulsed xenon lamp
Measurement time
1 sec.
Minimum measurement interval
3 sec.
Battery performance
Approx. 800 measurements (when using batteries under Konica Minolta’s testing conditions)
Measurement/illumination area
Ø 50 mm/ Ø 53 mm
Repeatability
Within ΔE*ab 0.07 standard deviation (when the white calibration plate is measured 30 times at intervals of 10 seconds)
Inter-instrument agreement
ΔE*ab: within 0.8
Average of 12 BCRA Series II colors
Observer condition
CIE: 2° Standard Observer
Illuminant condition
CIE: C, D65
Tolerance judgment*
Color difference tolerance (box tolerance and elliptical tolerance)
Color space/colorimetric data*
XYZ, Yxy, L*a*b*, Hunter Lab, L*C*h, Munsell (Illuminant C only), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI/Tw (Illuminant D65 only), WI ASTM E313 (Illuminant C only), YI ASTM D1925 (Illuminant C only), YI ASTM E313 (Illuminant C only), User index (Up to 6 can be registered from computer), SCAA scale
Languages* (Display)
LCD: English (default), German, French, Italian, Spanish, Japanese
Storable data sets
1,000 (Measuring head and data processor save different data)
