Thông tin sản phẩm

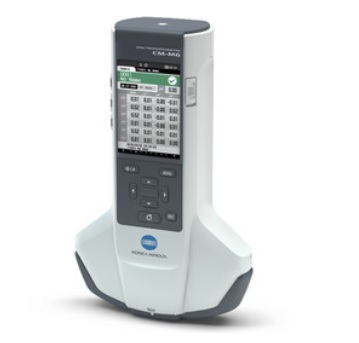

Máy đo màu Konica Minolta CM-M6 Multi-Angle Spectrophotometer
Model
CM-M6
Illumination/viewing system
45° illumination: -15° / 15° / 25° / 45° / 75° / 110° aspecular viewing angles with double-path technology
Detector Dual 40-element silicon photodiode arrays
Spectral separation device Linear variable filter
Wavelength range
400 to 700 nm
Wavelength pitch
10 nm
Photometric range
0 to 600 %; Output/display resolution: 0.01%
Light source
High-CRI white LED
Measurement time
Approx. 4.5 s; Minimum measurement interval: Approx. 5 s
Battery performance
Approx. 1500 measurement at 10-sec. intervals from fully charged battery
Measurement/illumination area
Ø 6 mm / Ø 12 mm
Repeatability
Colorimetric value: Standard deviation within ΔE*ab 0.05
(when a white calibration plate is measured 30 times at 10-second intervals after white calibration)
Inter-Instrument Agreement
Within ΔE*ab 0.2
(Averaged for 12 BCRA Series II tiles compared to values measured with a master body at 23℃)
Interface
USB2.0; Bluetooth®: optional
Display
3.5-inch TFT Color LCD
Display data
Colorimetric data: L*a*b*, L*C*h
Color difference data: Δ(L*a*b*), Δ(L*C*H*), ΔE*ab, CMC(l:c), ΔE94 (CIE1994), ΔE00(CIE DE2000), DIN6175-2
Other data display: MI, FF value, line graph, pass/fail judgement
Observer condition
2° and 10° colorimetric standard observer
Illuminant condition
A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12
