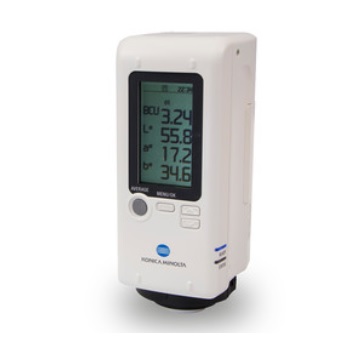

Máy đo màu Konica Minolta Colorimeter BC-10 PLUS
Model
Colorimeter BC-10 PLUS
Illumination / Viewing geometry
8°:di (8° illumination angle/diffuse viewing, specular component included (SCI); DIN5033 Teil7, JIS Z 8722 condition d, ISO7724/1, CIE No.15、ASTM E 1164)
Light source
Pulsed Xenon lamp
Receptors
6 silicon photocells (3 for measurement, 3 to control illumination)
Measuring/Illumination area
Ø 8 mm /11 mm
Display modes
Absolute Colour values (L*a*b* or L*C*h°)
0.01 - 5.25 BCU (Baking Contrast Units)
Memory
1,000 (Target data and measurement data)
Measuring range
L*: 10 to 100
Illuminant/observer condition
D65 / 10°
Repeatability
Standard deviation within ∆E*ab 0.1
(Measurement conditions: average of standard white plate measurements)
Minimum interval between measurements
Approx. 3 sec
