Thông tin sản phẩm

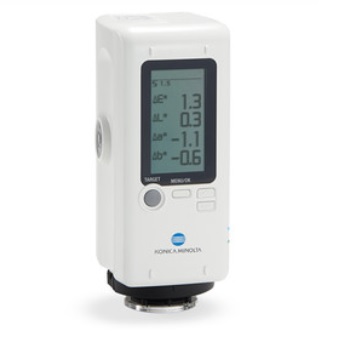

Máy đo màu Konica Minolta Colorimeter CR-10 Plus
Model
Colorimeter CR-10 PLUS
Illumination / Viewing geometry
8°:di (8° illumination angle/diffuse viewing, specular component included (SCI); DIN5033 Teil7, JIS Z 8722 condition d, ISO7724/1, CIE No.15、ASTM E 1164)
Light source
Pulsed Xenon lamp
Receptors
6 silicon photocells (3 for measurement, 3 to control illumination)
Measuring/Illumination area
Ø 8 mm /11 mm
(Optional Ø 5 mm /5 mm)
Display modes
Absolute Colour values (L*a*b* or L*C*h°; for targets only)
Colour difference values (∆L*,∆a*,∆b*,∆C*,∆H*,∆E*ab)
Memory
1,000 (Target data and measurement data)
Measuring range
L*: 10 to 100
Illuminant/observer condition
D65 / 10°
Repeatability
Standard deviation within ∆E*ab 0.1
(Measurement conditions: average of standard white plate measurements)
Minimum interval between measurements
Approx. 3 sec
Language support
English, Japanese, Chinese
Power source
Four AA-size batteries, USB bus power or Optional AC Adapter
Battery life
Alkaline-manganese batteries: Approx.2000 measurements at 10-sec. intervals
