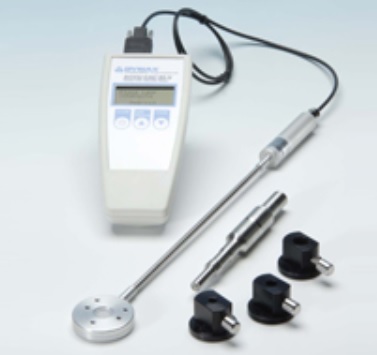

Máy đo năng lượng tia cực tím UV DYMAX ACCU-CAL 50-LED
Consistent curing requires periodic monitoring of visible energy intensity or dose. The ACCU-CAL™ 50-LED radiometer is simple to operate and offers repeatable measurement of visible light. The ACCU-CAL 50-LED can measure visible light energy emitted from lightguides (3 mm, 5 mm, and 8 mm), LED flood systems, BlueWave® QX4® LED heads, and line-pattern emitters.
With a spectral sensitivity from 350 to 450 nm (blue portion of the visible spectrum), the ACCU-CAL 50-LED measures intensities from 1 mW/cm2 to 40 W/cm2. A specially designed photo sensor assembly protects the photo sensor from the high temperatures sometimes associated with today’s high-intensity spot lamps.
- Measures range up to 40 W/cm2
- Sensitive at measuring stray or reflected visible light (as little as 1 mW/cm2)
- Only one calibration per year
- Set screw locks lightguide in place
- PTB and NIST traceable
