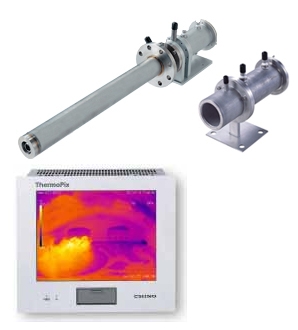

This system utilizes a CCD camera, which has sensitivity at 1.0μm and Image Processing Unit that provides an image and converts video signal from the camera into temperature information. The special high temperature optics lens array system can be inserted through a small insertion port on many types of furnaces. The Image Processing Unit has an 8.3” LCD touch panel that displays wide-angle image and temperature information. It also provides the capability of up to 40 points of Contact Inputs/Outputs as well as 32 points of Analog Outputs through an external I/O unit.
Wide Temperature Range
Simple Configuration
Video & Area Temperature Functions
Hi-Temp Optical Lens Array System
Thông số kỹ thuật
Lens Array and Camera Unit
| Viewable Angle |
H96" x V70" (100° Lens) |
| Wavelength |
0.8 to 1.0μm |
| Temp Range |
700° to 2500°C (Assignable Span:200° to 500°C) |
| Monitoring Method |
Standard - Monitoring on
Output - Provides Analog Color signal |
| Accuracy |
±1% at Full Scale (Black Body) |
Image Processing Unit
| Camera Control |
Up to 3 Cameras |
| Display |
8.4" Color LCD (Touch Panel) |
| External I/O |
Contact Output Max 40 points (w/ Optional I/O unit) |
| Contact Input Max 40 points (w/ Optional I/O unit) |
| Analog Output Max 32 points (w/ Optional I/O unit) |
| Operational Condition |
Temperature 0 to 45°C
Humidity 20 to 85% RH (Non Condensation） |
