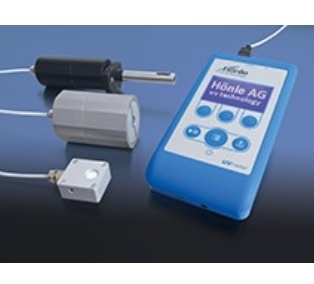

Measurement of UV intensity and dosage for spot and flood cure units

• UV intensity and UV dosage measurement
• extremly handy and lightweight
• compact sensor design
• automatic sensor recognition
• Two-channel measuring for different wavelength spectra
• large data storage for recording measurement sequences
• Auto start function of measurement when minimum values are exceeded
• long accumulator service life due to latest lithium-ion technology
• USB port for communiaction with PLC, PC or for battery charging
• highest user comfort thanks to membrane keypad and shortcut keys

Accessories:

Single sensors

• UVA (340 nm - 410 nm); maximum intensity 5 W/cm²
• UVB (260 nm - 330 nm); maximum intensity 2 W/cm²
• UVC (230 nm - 285 nm); maximum intensity 2 W/cm²
• VIS   (360 nm - 550 nm); maximum intensity 10 W/cm²
• LED (310 nm - 485 nm); maximum intensity 30 W/cm²

Light guide sensors

• UVC (230 nm - 285 nm); maximum intensity 2 W/cm²
• UVA (340 nm - 410 nm); maximum intensity 20 W/cm²
• LED  (310 nm - 485 nm), maximum intensity 30 W/cm²

quartz rod  sensors

• UVC (230 nm - 285 nm); maximum intensity 2 W/cm²
• UVA (340 nm - 410 nm); maximum intensity 5 W/cm²
