Máy đo tọa độ 3D Chien Wei CWB-450DV, CWB-450DV-CNC

Mã sản phẩm: MSP |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy đo tọa độ 3D Chien Wei CWB-450DV, CWB-450DV-CNC

    Yêu cầu giá tốt:

    0984.843.683.

    Email: hien@ttech.vn

Thông tin sản phẩm

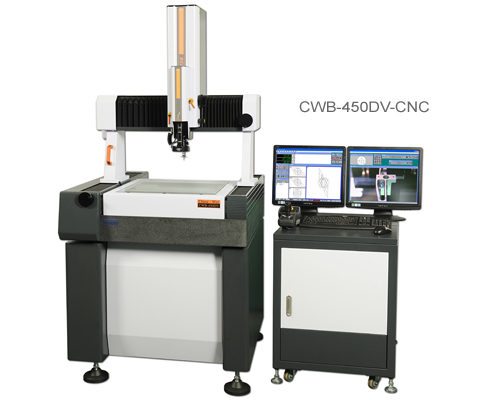

Máy đo tọa độ 3D Chien Wei CWB-450DV, CWB-450DV-CNC



CWB-450DV CWB-450DV-CNC
MEASURING TRAVEL Probe: 400x380x150 mm ( X,Y,Z )
Vision: 400x430x150 mm ( X,Y,Z )
Probe: 400x380x150 mm ( X,Y,Z )
Vision: 400x430x150 mm ( X,Y,Z )
RESOLUTION Renishaw Linear Scales 0.001 mm Renishaw Linear Scales 0.001 mm
SOFTWARE IK 5000 QUADRA CHEK+Win-XP IK 5000 QUADRA CHEK+Win-XP
HARDWARE PC+24" LCD Color Monitor PC+24" LCD Color Monitor
NON-CONTACT VISION 1/3" Color CCD+ZOOM 1/3" Color CCD+ZOOM
ZOOM magnification 10x...100x (Option 20x~200x) 10x...100x (Option 20x~200x)
SURFACE LIGHT White LED White LED
CONTOUR LIGHT Green LED Green LED
AUTO-FOCUS   Z Axis
TRIGGER PROBE Renishaw MCP or MH20i (option) Renishaw MH20i
Z AXIS BALANCE Counter Weight Counter Weight
OPERATION Manual CNC Programable
DRIVE   Servo Motors+Joystick
TRANSMISSION Linear Guideway+Drive Nut Linear Guideway+Drive Nut
ACCURARY U1=2+L/200 um ; U3=4+L/100 um (Temperature 20°c±1) Humidity: 55~65% U1=2+L/200 um ; U3=4+L/100 um (Temperature 20°c±1) Humidity: 55~65%
GRANITE PLATES DIN. 876, 0 GRADE (AREA 520x520 mm) DIN. 876, 0 GRADE (AREA 520x520 mm)
DEMO-PARTS HEIGHT 150 mm 150 mm
DEMO-PARTS WEIGHT 30 kgs 30 kgs
MACHINE DIMENSIONS 92x97x204 cm (Including Stand Frame) 92x97x204 cm (Including Stand Frame)
APPEARANCE 192x97x204 cm (Including Deluxe Table) 212x97x204 cm (Including Deluxe Table)
