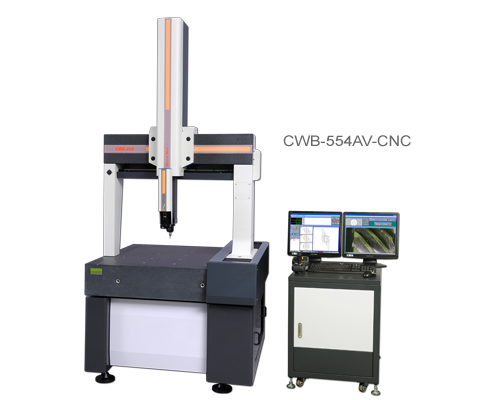

CWB-554A |
CWB-554AV |
| MEASURING TRAVEL |
500x500x400 mm ( X,Y,Z ) |
500x500x400 mm ( X,Y,Z ) |
| RESOLUTION |
Renishaw Linear Scales 0.001 mm |
Renishaw Linear Scales 0.001 mm |
| SOFTWARE |
IK 5000 Quadra Chek+Win-XP |
IK 5000 Quadra Chek+Win-XP |
| HARDWARE |
PC+24" LCD Color Monitor |
PC+24" LCD Color Monitor |
| NON-CONTACT VISION |
|
1/3" Color CCD+ZOOM |
| ZOOM magnification |
|
10x...100x (Option 20x~200x) |
| SURFACE LIGHT |
|
White LED |
| AUTO-FOCUS |
|
|
| TRIGGER PROBE |
Renishaw MCP or MH20i (option) |
Renishaw MCP or MH20i (option) |
| Z AXIS BALANCE |
Cylinder |
Cylinder |
| OPERATION |
Manual |
Manual |
| DRIVE |
|
|
| TRANSMISSION |
Air Bearing in 3 Axes (85psi; 0.6Mpa more is requested) |
Air Bearing in 3 Axes (85psi; 0.6Mpa more is requested) |
| ACCURARY |
U1=1.5+L/200 um ; U3=3+L/200 um (Temperature 20°c±1) Humidity: 55~65% |
U1=1.5+L/200 um ; U3=3+L/200 um (Temperature 20°c±1) Humidity: 55~65% |
| GRANITE PLATES |
DIN. 876, 0 GRADE (AREA 715x1000 mm) |
DIN. 876, 0 GRADE (AREA 715x1000 mm) |
| DEMO-PARTS HEIGHT |
400 mm |
400 mm |
| DEMO-PARTS WEIGHT |
150 kgs |
150 kgs |
| MACHINE DIMENSIONS |
111x123x236 cm (Including Stand Frame) |
111x123x236 cm (Including Stand Frame) |
| APPEARANCE |
211x123x236 cm (Including PC Table) |
211x123x236 cm (Including PC Table) |
| MACHINE WEIGHT |
900 kgs |
950 kgs |
| OPTION/SOFTWARE |
|
|
