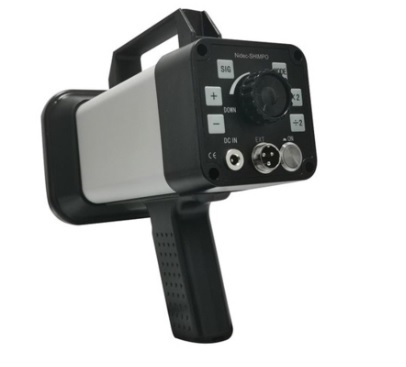

| Model DT-735 Specification |
| Flashing Range |
60-12,000 fpm (flashes per minute) |
| Accuracy |
± 0.01% |
| Resolution |
0.1 from 60-9999; 1 from 6,001-12,000 |
| Display |
5 digits 0.4" (10 mm) height |
| Flashtube Power/Life |
Xenon ≤ 45W / 50,000,000 |
| Flash Duration |
10-30 μs automatically adjusts with flash rate |
| External Trigger Input |
5V ~ 12V pulse signal (high level trigger) up to 50 mA |
| Lux Rating |
8" (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 15.5" (400 mm) irradiation diameter.
20" (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 23.5" (600 mm) irradiation diameter |
| Battery |
Ni-MH |
