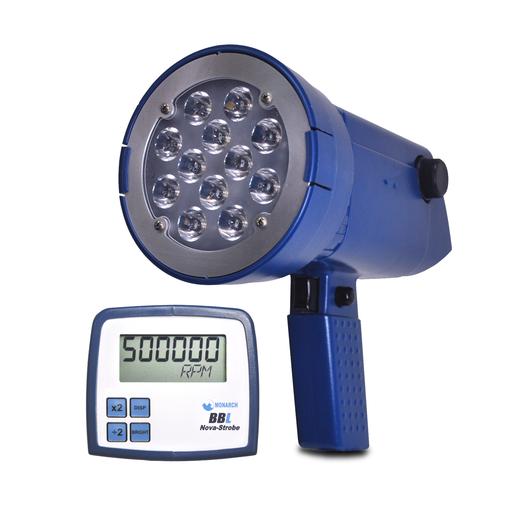

| Nova-Strobe LED SPECIFICATIONS |
| Models |
BBL Basic |
DBL Deluxe |
PBL Phaser |
| Flash Range (FPM/RPM): |
30-500,000 |
| Display: |
6 Digit Numeric and 5 Digit Alphanumeric LCD |
| Accuracy/Resolution: |
.002% of setting or +/- 1 lsd/ 0.01 FPM |
| Light output: |
5000 Lux @ 6000 FPM, 8 inches (20cm), 1% duty cycle |
| Flash Energy/Duration/Brightness: |
Adjustable to 18 degrees /3000µsecs |
| Light Source: |
12 LED Array |
| Color Temperature: |
6300°K |
| External Triggers in/out: |
N/A |
TTL (24Vdc Max) Input. Provides 3.3 Vdc TT output |
| Tachometer Mode: |
N/A |
0-500,000 RPM use with optional remote sensor |
| Programmable Memory: |
N/A |
Yes |
| Internal Phase Shift: |
N/A |
Yes |
| Phase Delay - Degrees: |
N/A |
0.1 to 359.9 degrees |
| Time Delay - milliseconds: |
N/A |
0.01 to 1000 msec. |
| Virtual RPM (Slow Motion): |
N/A |
0-200 VRPM |
| Operating Time: |
8-10 hours typical @ 1800 FPM |
8-10 hours typical @ 1800 FPM with batteries or continuous using power supply |
| Power Supply: |
Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger |
Internal NimH rechargeable batteries or continuous off 115/230 50/60 Hz Vac power supply/recharger |
| Weight: |
1.9 Lbs (860g) |
| Size (L x W x H): |
Body: 9" x 3.66" x 3.56" (229 x 93 x 90 mm); Reflector Housing: 4.8" (122 mm) dia.; Handle: 4.254" (108 mm long) |
