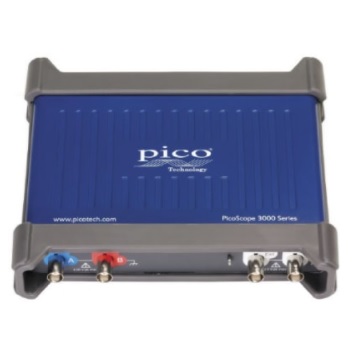

Máy hiện sóng Oscilloscope PicoScope 3203D & MSO, PicoScope 3204D & MSO, PicoScope 3205D & MSO, PicoScope 3206D & MSO

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy hiện sóng Oscilloscope PicoScope 3203D & MSO, PicoScope 3204D & MSO, PicoScope 3205D & MSO, PicoScope 3206D & MSO

Thông tin sản phẩm

Máy hiện sóng Oscilloscope PicoScope 3203D & MSO, PicoScope 3204D & MSO, PicoScope 3205D & MSO, PicoScope 3206D & MSO


PicoScope 3000 Series Oscilloscope Specifications
Oscilloscope — vertical (analog inputs)
  PicoScope 3203D & MSO PicoScope 3204D & MSO PicoScope 3205D & MSO PicoScope 3206D & MSO PicoScope 3403D & MSO PicoScope 3404D & MSO PicoScope 3405D & MSO PicoScope 3406D & MSO
Input channels 2 channels, BNC single-ended 4 channels, BNC single-ended
Bandwidth (−3 dB) 50 MHz 70 MHz 100 MHz 200 MHz 50 MHz 70 MHz 100 MHz 200 MHz
Rise time (calculated) 7.0 ns 5.0 ns 3.5 ns 1.75 ns 7.0 ns 5.0 ns 3.5 ns 1.75 ns
Hardware bandwidth limiter Switchable, 20 MHz
Vertical resolution 8 bits
Input ranges ±20 mV to ±20 V full scale in 10 ranges
Input sensitivity 4 mV/div to 4 V/div in 10 vertical divisions
Input coupling AC / DC, programmable
Input characteristics 1 MΩ ±1%, in parallel with 14 pF ±1 pF
DC accuracy ±3% of full scale ±200 μV
Analog offset range (vertical position adjust) ±250 mV (20 mV, 50 mV, 100 mV, 200 mV ranges)
±2.5 V (500 mV, 1 V, 2 V ranges)
±20 V (5 V, 10 V, 20 V ranges)
Offset adjust accuracy ±1% of offset setting, additional to DC accuracy
Overvoltage protection ±100 V (DC + AC peak)
