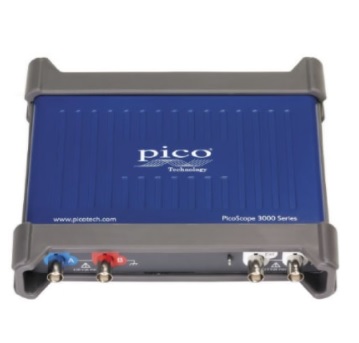

| PicoScope 3000 Series Oscilloscope Specifications |
| Oscilloscope — vertical (analog inputs) |
| |
PicoScope 3203D & MSO |
PicoScope 3204D & MSO |
PicoScope 3205D & MSO |
PicoScope 3206D & MSO |
PicoScope 3403D & MSO |
PicoScope 3404D & MSO |
PicoScope 3405D & MSO |
PicoScope 3406D & MSO |
| Input channels |
2 channels, BNC single-ended |
4 channels, BNC single-ended |
| Bandwidth (−3 dB) |
50 MHz |
70 MHz |
100 MHz |
200 MHz |
50 MHz |
70 MHz |
100 MHz |
200 MHz |
| Rise time (calculated) |
7.0 ns |
5.0 ns |
3.5 ns |
1.75 ns |
7.0 ns |
5.0 ns |
3.5 ns |
1.75 ns |
| Hardware bandwidth limiter |
Switchable, 20 MHz |
| Vertical resolution |
8 bits |
| Input ranges |
±20 mV to ±20 V full scale in 10 ranges |
| Input sensitivity |
4 mV/div to 4 V/div in 10 vertical divisions |
| Input coupling |
AC / DC, programmable |
| Input characteristics |
1 MΩ ±1%, in parallel with 14 pF ±1 pF |
| DC accuracy |
±3% of full scale ±200 μV |
| Analog offset range (vertical position adjust) |
±250 mV (20 mV, 50 mV, 100 mV, 200 mV ranges)
±2.5 V (500 mV, 1 V, 2 V ranges)
±20 V (5 V, 10 V, 20 V ranges) |
| Offset adjust accuracy |
±1% of offset setting, additional to DC accuracy |
| Overvoltage protection |
±100 V (DC + AC peak) |
