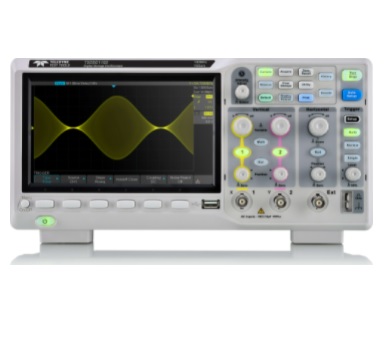

Máy hiện sóng Oscilloscope Teledyne LeCroy T3DSO1202A
200 MHz, 1 GS/s per Ch, 2 GS/s interleaved, 2 CH, 14 Mpts/Ch DSO with 7 inch Color Display
- 200 MHz bandwidths
- 2 Channels
- Sample rates 2GSa/s
- 14 Mpts/Ch, 28Mpts interleaved
- 7” Bright TFT LCD (800 x 480)
- Serial Bus Trigger and Decode as standard – I2C, SPI, UART, RS232, CAN, LIN allowing users to debug serial buses directly in the Oscilloscope
- Optional MSO – 16 Digital Channels (excluding the T3DSO1102) which adds mixed signal debugging to the Oscilloscope
- Advanced Trigger – Edge, Slope, Pulse Width, Window, Runt, Interval, Time Out (Dropout), Pattern
- Waveform Sequence Recorder – record and playback up to 80,000 waveforms. Allows users to replay the changes which have occurred in their waveform history.
- Connectivity – USB for mass storage, printing and PC control, plus LAN for fast data transfer
