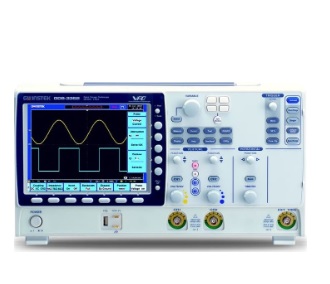

Máy hiện sóng số Digital Oscilloscope GW Instek GDS-3152
150MHz, 2 CH, Visual Persistence DSO
- 150MHz, 2-Channel, Visual Persistence Oscilloscope
- 2.5Gsa/s real-time sample rate and 100GSa/s equivalent-time sample rate to accurately re-construct waveforms
- VPO waveform processing to capture and display abnormal signals
- Large 8 800 * 600 high-resolution screen allows the observation of complex signal details
- Unique split screen function enables independent setting and display of each waveform channel
- Extendable application software to make future extensions / upgrades easy
- Three input impedances (50Ω/75Ω/1MΩ) selectable to meet different test requirements
- Optional Power Analysis software for the power quality evaluation of a power source
- Optional Serial Bus analysis software for I2C, SPI and UART serial signal triggering and decoding, for 4-channel versions only
