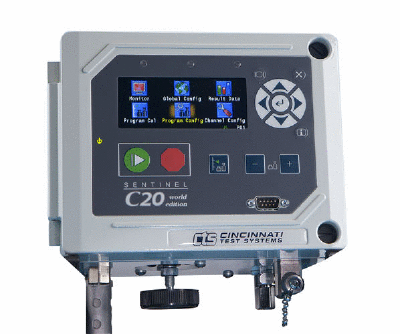

Máy kiểm tra rò rỉ, thử kín sản phẩm Cincinnati Sentinel C20WE
Standard Test Pressure Ranges
Standard pressure transducer, valve manifolds, and regulator ranges:
-14.5, 15, 100 (PSIG)
- Optional High cV flow valves and manifold available up to 100 psig range allows 5 times faster fill and exhaust to reduce cycle times on large parts
- Absolute pressure transducer
- Two (2) point pressure calibration
- Data resolution 0.00001 psi/ and scc/m.
Selectable Test Units of Measure
- Pressure: PSIG, PSIV, inH2O, cmH2O, mmH2O, kg/cm2, ATM, inHg, cmHg, mmHg, kPa, Pa, MPa, Bar, mBar, Torr
- Flow: Sccm, sccs, scch, slpm, slps, slph, scfm, scfs, scfh
- Time: Sec, msec, min
- Units of measure can be instrument global or per test program
