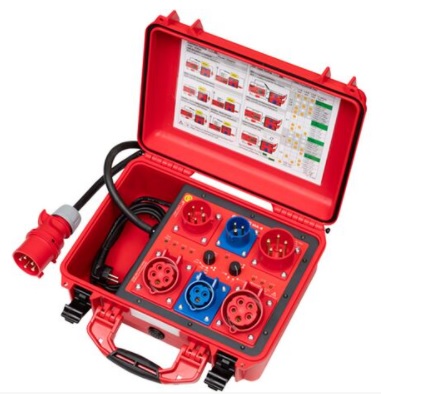

Máy kiểm tra thiết bị điện gia dụng BENNING MA 4, MA 3
Measuring adapter for active and passive testing of single-phase and three-phase equipment up to 32 A
- testing in compliance with DIN VDE 0701-0702, DIN EN 62353, DIN EN 60974-4 and DGUV Regulation 3
- testing of single-phase (230 V, 16 A) and three-phase (400 V, 16 A + 32 A) equipment with CEE connection
- differential current measurement of three-phase appliances and machines in operation (MA 4)
- safety and functional testing of CEE extension cables
- robust and waterproof transport case (IP 67)
- universally applicable for all single-phase appliance testers that connect a mains voltage
Application:
Enhance your single-phase appliance tester to enable standard-compliant testing of equipment with CEE connection (16 A, 3-pin and 16 A + 32 A, 5-pin), e. g. electrical appliances, machines and extension cables.
CEE extension cables are tested via the plug and coupling side, so that in addition to a safety test (RPE, RInsu) a complete functional test (continuity/cable break, short-circuit and phase sequence testing) of all conductors is carried out.
