Máy kiểm tra thiết bị điện gia dụng BENNING ST 710
Safety-related testing of electrical devices/work equipment such as e.g. electric tools, motorized equipment, lamps, extension cables, household appliances, electrical office machines, consumer electronics and information technology.
- testing in compliance with DIN VDE 0701-0702 (EN 62638), DGUV Rule 3, BetrSichV (German Health and Safety at Work Regulations), ÖVE / ÖNORM E 8701, NEN 3140
- quick – complete testing within 10 seconds
- easy – operation by means of three keys
- mobile – testing can be made network-independently
- protective conductor resistance with a testing current of 200 mA DC and automatic polarity reversal
- insulating resistance with a testing voltage of 500 V DC
- protective conductor current and contact current by means of alternative leakage current measurement method
- voltage measurement on external shock-proof socket (L-N, L-PE, N-PE)
- automatic testing procedure for devices of class I (key 1), class II/III (key 2) and line test (key 3)
- testing of cable reels, multiple distributors and device connecting cables with rubber connector
- measuring result with “pass / fail” information
- limiting values preset in compliance with DIN VDE standard
- indication of correct function key in case of incorrect operation and if the test sample is not switched on
- sufficient battery capacity (4 x 1.5 V, mignon, AA, IEC LR6) for 2500 test samples
- three-phase test objects can be tested by means of optional measuring adapter

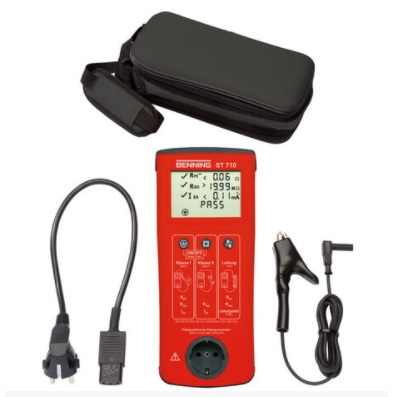

- carrying case, test cable with alligator clip, appliance cable, battery set
