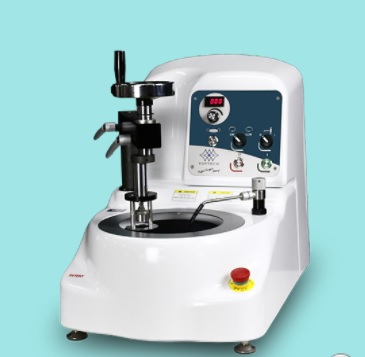

Model
|
P20G-1-M1
|
P25G-1-M1
|
|
Platen Size (mm)
|
Ø203.2 (8”)
|
Ø254 (10”)
|
|
Platen Quantity
|
1
|
|
Grinding Method
|
Manual (Auxiliary Sample Holder)
|
|
Grinding Quantity
|
1
|
|
Sample Size (mm)
|
Ø25/Ø32/Ø40/Ø50 (Special sample size can be customized)
|
|
Platen Motor Power (W)
|
400
|
|
Platen Rotational Speed (rpm)
|
1~600 (Effective Rotational Speed 10~600)
|
|
Machine Dimension WxDxH (mm)
|
560x670x600
|
|
Machine Weight (kg) AC110V 1Ø
|
57
|
58
|
|
Machine Weight (kg) AC220V 1Ø
|
47
|
48
|
|
Standard Accessories
|
Polishing Platen 1pc, Anti-Splash Cover 2 pcs, Silicon Carbide Paper 8 pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, Filter 1 set, 500g Dispenser 1 pc
|
|
Option
|
P20F0027 Dispenser Set for One Bottle, P20F0028 Dispenser Set for Four Bottles, PA0108-1 8” Anti-Splash Cover (Manual), PA0108 10” Anti-Splash Cover (Manual), PA0108-3 8” Anti-Splash Cover (Auto), PA0108-4 10” Anti-Splash Cover (Auto), PA0108-2 Anti-Splash Cover (Full-Cover)
|
