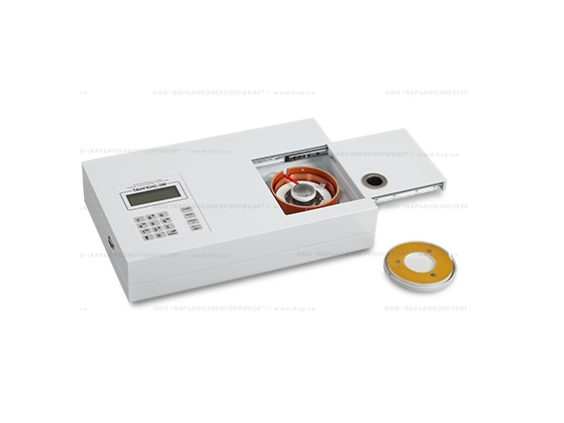

Máy thử cách điện dầu biến áp Tangens-3M KEP

Mã sản phẩm: Tangens-3M |

Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy thử cách điện dầu biến áp
Model: Tangens-3M
Hãng: KEP

Thông tin sản phẩm

- A digital automatic dissipation factor measurement apparatus Tangens-3M is designed for measuring the dielectric dissipation factor tgδ of transformer oil and other insulating fluids according to IEC 60247 and GOST 6581-75 standards.
- The device can operate with six different measurement cells, parameters of which are stored in a non-volatile memory and are easily accessible from the built-in menu. All settings and 2000 last measurements are also stored in a non-volatile memory of the unit.
- The package includes software on a CD-ROM that allows importing the measurements data from the device to a PC. The data can be imported in MS Word or MS Excel formats. The device connects to a PC via the serial interface (RS232C).

Thông số kỹ thuật

Operating Conditions

The device is designed for an indoors operation under the following conditions:

Condition	Value
Air temperature, °С	from -20 to +40
Relative humidity, %, up to	80 at +20° С
Atmospheric pressure, kPa (mm hg)	84,0 – 106,7 (630 – 800)

Dissipation factor measurement range	0,0001 ÷ 1.0 (0.01 ÷ 100 %)
Dissipation factor measurement error, %, max	(0,01 tg + 0,0002)
Effective voltage applied to the measurement cell, V	2000
Operating voltage measurement range, V	0 ÷ 2700
Relative error limit when measuring the operating voltage, %	1.0
Capacitance measurement range, pF	5 ÷ 50
Relative error limit when measuring the capacitance, %	(0.5 + tg)
Heating range, °С	10 ÷ 100
Temperature measurement error, °С	±1
Measurement time, including callibration and heating to 90 °С (with measurement intervals of 10 °С), minutes	30
Measurement time, including callibration and heating to 90 °С (with measurement intervals of 10 °С) and cooling down, minutes	80
