- Most suitable for connector evaluation test.
- Force minimum display 0.001 N (when 5N load cell is used).
- Most suitable for testing small (miniature) parts.

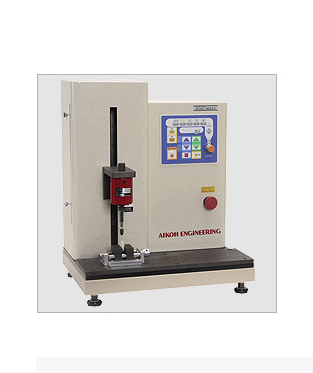

- A desktop precision force tester.
- Capable of switch feeling test also.
Product evaluation test
3-point bending test
Switch feeling test (when optional CF card V-103A is used)
Connector evaluation test
Thông số kỹ thuật
| Model |
MODEL-1605VC |
| Max. force |
500N（50kgf） |
| Force accuracy |
Depends on the load cell used. |
| Force measuring amplifier |
MODEL-1016C |
| Controller |
Built in |
| Test speed |
0.5 - 600mm/min |
| Speed changing |
15 steps or stepless |
| Stroke |
250mm |
| Distance between test center and column |
100mm |
| Table size |
W475× D150mm M10×1.5 |
| Drive motor |
Servo motor |
| Detector |
Rotary encoder |
| Display accuracy |
0.1mm |
| Dimensions |
W480×H578×D375mm |
| Stand mass |
Approx. 44 kg |
| Amplifier mass |
Approx. 5.2 kg |
| Power supply |
Single phase, 100 VAC – 240 VAC, 5A |
