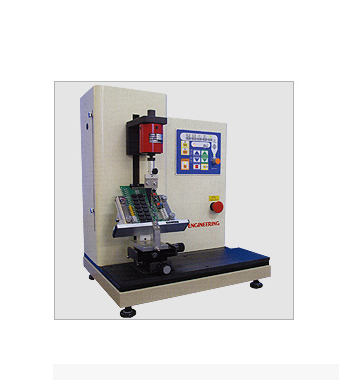

A precision tester designed for lead-free solder tests of boards with parts in conformance with JIS Z 3198-6 and JIS Z 3198-7.
45° pull test of solder joints of QFP leads / JIS Z 3198-6
Shear test of solder joints of chip parts / JIS Z 3198-7
Thông số kỹ thuật
| Model |
MODEL-1605VC/NF |
| Max. force |
50N（5kgf） |
| Force accuracy |
Depends on the load cell used. |
| Force measuring amplifier |
MODEL-1016C |
| Controller |
Built in |
| Test speed |
0.5 - 600mm/min |
| Speed changing |
15 steps or steplessly variable |
| Stroke |
250mm |
| Distance between test center and column |
100mm |
| Table size |
W475×D150mm M10×1.5 |
| Drive motor |
Servo motor |
| Detector |
Rotary encoder, linear gage (optional) |
| Display accuracy |
0.1mm |
| Displacement reading |
10 µm (standard), 1 µm (optional) |
| Dimensions |
W480×H578×D375mm |
| Stand mass |
Approx. 44 kg |
| Amplifier mass |
Approx. 5.2 kg |
| Power supply |
Single phase, 100 VAC – 240 VAC, 5 A |
