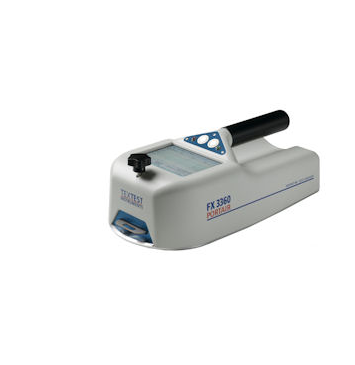

Continuously measures the air permeability or the pressure drop, respectively, and/or the thickness of fabrics, non-wovens, felts, films and paper maker cloth.
The instrument for measurements at the moving web directly in the production machine.
Special Features
Wide measuring range. AP: approx. 0.2-1,000 ft³/ft²/min (approx. 1-5,000 l/m²/s), thickness: 0-6 mm.
The instrument is suitable for both, spot and profile measurements.
High measuring accuracy
High measuring speed of up to 200 m/min. (!)
High resolution of up to 1 mm test point pitch.
Light weight portable instrument, suitable for one-handed operation, even overhead.
Touch screen display for digital and graphic display of the test results.
Worldwide only instrument of this kind.
Works in accordance with all major test standards.
Calibratable.
