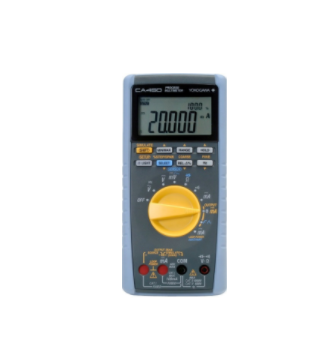

The Yokogawa CA450 Process Multimeter is a portable test instrument to combine a digital RMS multimeter and a loop calibrator to give process technicians the same functionality in one tool. The Yokogawa CA450 provides 24-Volt loop power, reducing the need for carrying a separate power supply when performing transmitter testing.
Generation Functions
SIMULATE (SINK) function simulates transmitters
4-20 mA span/step/auto-step/sweep output
Measurement Functions
High accuracy signal measurement: DC mA 0.05%/30.000 mA
Handheld DMM function
Peak/Hold function for DCS power peak-to-peak measurement
Dedicated sensor modes for direct reading of many sensor signal types
Enhanced Safety - Helps Eliminate Electric Shocks
Current terminal shutter prevents incorrect connections
Sensor function handles AC load current measurement
Meets 600 V CAT. IV, 1000 V CAT. III safety standards
