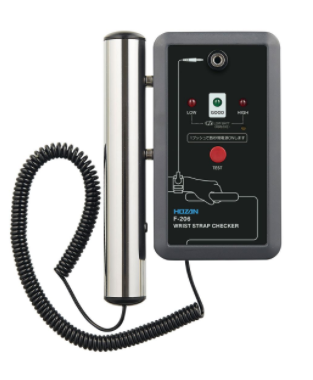

Thiêt bị đo điện áp tĩnh điện Hozan F-206
- Easily and reliably check the effectiveness of wrist strap
- Compatible with ESD protection standard (RCJS)
- It is an essential checker for morning and afternoon startup inspection.
- Rod electrode specified by RCJS standard (25 mmφ × 150 mm) specification.
- Pass / fail judgment according to the standard can be easily and accurately done.
- With surface fastener which can be fixed on a desk etc.
- display
+ LOW : Wrist strap ≤ 750 kΩ
+ GOOD : 750 kΩ
+ HIGH : 9 MΩ ≦ wrist strap
- Accuracy :
+ 750 KΩ ··· - 0%, + 6%
+ 9 MΩ ··· - 6%, + 0%
- Power supply : With lamination (6F22) battery × 1
- Battery life : More than 15000 times
- External dimensions :
+ 76 (W) x 35 (H) x 135 (D) mm (not including projection)
+ Electrode: 25 mm φ 160 mm (Metal part 150 mm)
- weight : 285 g (battery not included)
