Construction

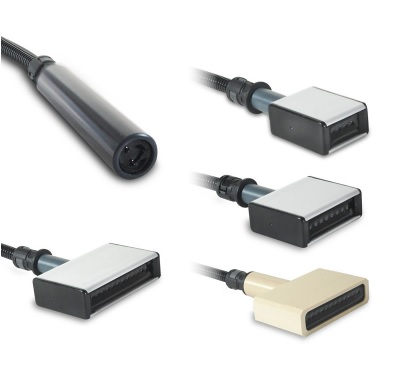

All materials used meet UL94 V-0 flammability ratings. 7090 - 3 tungsten emitters. 7095-x tungsten emitters at 5 mm pitch (see Datasheet).
Dimensions
7090: Diameter 20 mm. Length: 100 mm (body), 123.5 mm (including connector). 7095 Series available lengths: 7095-4: 36 mm, 7095-8: 56 mm, 7095-12: Lengths 76 mm.
Weight
7090: 110 g 7095-4: 100 g, 7095-8: 120 g, 7095-12: 140 g
Cable
2 m of HV cable. Longer lengths can be specified at time of order. Cable terminates in HV connector. Protective nylon conduit on cable. Minimum bend diameter 100 mm.
Safety
100 MOhm resistance for safe operation.
Environmental
Clean, dry and oil-free location. Temperature 60 °C max.
Generator
Use with Fraser 30 kV generators. State generator model at time of order.
Certification
CE.
Options
7095-12 HT: High temperature version available (100 °C max).
