Thiết bị chiếu tia cực tím Hoenle (Honle) UVATEC for Surface Disinfection

Thiết bị chiếu tia cực tím Hoenle (Honle) UVATEC for Surface Disinfection

Thiết bị chiếu tia cực tím Hoenle (Honle) UVATEC for Surface Disinfection

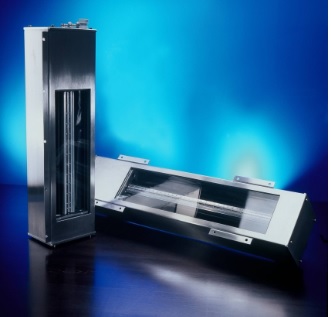

Compact UV system with CAD-optimized reflector geometry for surface disinfection of packaging materials.

• Highest inactivation rates of micro-organisms even at irradiation times of below 0.5 s
• Air-cooled and splashproof housing made of stainless steel in type of protection IP65, equipped with a quartz filter at the output aperture
• Integrated shutter system with pneumatic drive for hiding the UV lamp during machine stops
• High-performance UV lamps with low ozone output in arc lengths from 100 to 1750 mm, manufactured in our own lamp production company
• Specific lamp output of up to 236 W/cm
• Compact and slim design for adaptation to very different requirements
• Power steps or continuously variable power control from 50 to 100 % as well as stand-by mode with 50 % output when the reflector is closed
• Individual interface adaptation for the production machine
• Switch cabinet in stainless steel
