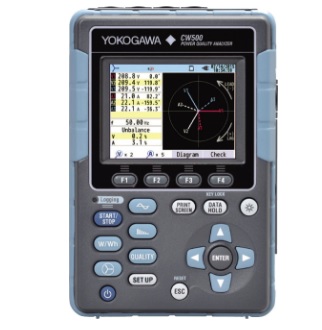

Thiết bị đo công suất và chất lượng điện áp Yokogawa CW500-B1-D
Power Quality Analyzer - With Bluetooth Function - AC Cable, UL/CSA standards. Does not include current clamps, order separately.
- Current Clamps not included, order separately
- Safety Design
This product complies with safety standard IEC 61010-1 CAT. IV 300V/ CAT. III 600V/CAT. II 1000V.
- Power Quality Measurement
This product supports international power quality measurement standard IEC61000-4-30 Class S. It can perform highly accurate frequency and rms voltage measurements and harmonic analysis as well as simultaneously measure without gaps swell, dip, interruption, transient, inrush current, and flicker that are necessary for capturing and monitoring power abnormalities.
- Power Measurement
This product can measure active, reactive, and apparent powers as well as watt-hour, power factor, rms current, phase angle, and neutral line current.
- Wiring Systems
This product supports single-phase two-wire (four systems), single-phase three-wire (two systems), three-phase three-wire (two systems), and three-phase four-wire measurement lines.
- Demand Measurement
You can monitor in a simplified form the usage condition so that the specified target value (contract demand) is not exceeded.
- Waveform and Vector Displays
