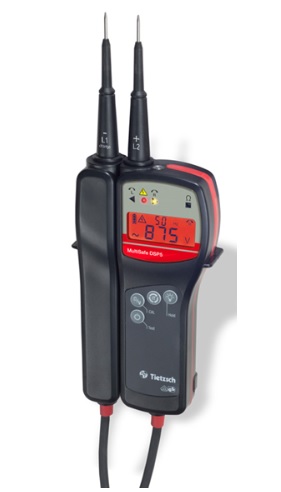

Thiết bị đo điện áp Tietzsch MULTISAFE DSP 5
Voltage tester:
- precise display of the voltage 0,3 V up to 1200 V AC /0,01 up to 1500 V DC
- extended test range for low and battery voltages from 0.01 to 19.99 V DC
- extremely resistant to voltage – CAT IV 1000 V – VDE certified
- large two-color illuminated display (red / white), for a clear warning of dangerous voltages
- clear LED indicator for dangerous voltage
- load connection for interference voltages and RCD tripping
- hold the measured value with the HOLD key
Continuity tester:
- fast continuity test with sound
- exact resistance measurement in the range of 0.01 kOhm to 1000 kOhm
- green LED for continuity
Phase and phase sequence tester:
- phase tester with display “POL” and red LED
- phase sequence tester with LCD and LED display left / right
- controller-monitored test with error detection to avoid false indications
- phase and phase sequence tests can also be performed with insulating gloves
- additional phase sequence testing without ground reference for IT power grids
More functions:
- measuring point illumination
- slim test electrodes for tight terminal blocks
- one-hand operation when checking sockets
- easy operation
- insulation fault detection by two-color cable insulation
- extremely stable housing, even in cold environment
- IP 65 – waterproof
- on the back with belt clip
