Fully Automatic Resistance Range, Test Voltage and Electrification Period control
Automatic or Continuous Electrification Control
Rugged High Performance 80 inches (200cm) Test Leads
Powered by one long lasting 9V alkaline battery
Wide Resistance Measurement Range from 0.01 ohm to 9.99x1012 ohms
Nominal Full Range Tolerance Averages <±5%
Large, easy to read LCD Display
Meets requirements of ESD Association Standards for material and audit resistance measurement requirements
Certificate of Calibration Traceable to NIST included

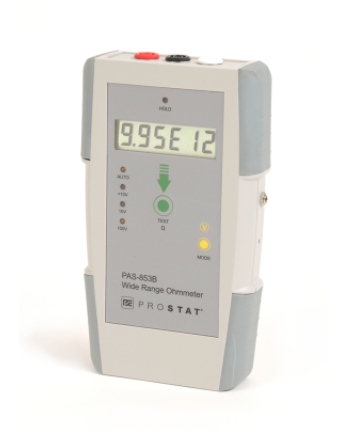

The PAS-853B is a constant voltage wide range ohmmeter designed specifically for ESD Plant Auditors who must make many measurements quickly while supporting ANSI/ESD S20.20 Program Standard and periodic verification requirements.
The PAS-853B performs in accordance with standard resistance measurement practices outlined in ANSI/ESD 541 Packaging and meets all audit requirements of ESD TR53.
Variable & Constant Test Voltages in Auto Mode:
<10 Volts Variable from 0.01 to 9.9x103 ohms
10 Volts (±<5% Constant Voltage) from 1.0x104 to 9.99x105 ohms
100 Volts (±<2% Constant Voltage) from 1.0x106 to 9.99x1012 ohms
