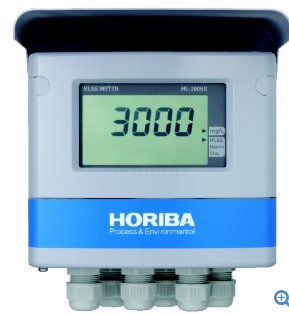

Thiết bị đo độ bùn Horiba HU-200SS

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị đo độ bùn Horiba HU-200SS

Thông tin sản phẩm

Thiết bị đo độ bùn Horiba HU-200SS


Measuring method Light transmission method
Measurable range Activated sludge (MLSS): 0-20000 mg/L   Resolution: 1 mg/L (0-10000mg/L)
Kaolin: 0-10000 mg/L   Resolution: 10 mg/L (10000-22000mg/L)
Clay(inorganic mud): 0-20000 mg/L
Repeatability Within a reading value ±3% or ±10 mg/L, whichever is larger. (sensor connecting sludge measured value)
Transmission output One points 4 to 20 mA DC Input/output insulation type Maximum load resistance 900 Ω
Contact output Three points Output type: No-voltage contact output Relay contact, SPDT
Contact capability R1, R2: Selectable from upper limit alarm, lower limit alarm, transmission output Hold, and cleaning output. (opened at alarm operation, closed usually, closed at power-off)
 FAIL: Error warning (normally closed; open when an error occurs; open when the power is turned OFF)
Cleaning output One points   Active voltage contact output (connected supply voltage output)
 Contact capability: Solenoid valve drive for cleaning
Contact input One points   Contact type: No-voltage a contact for open collector
 Contact capability: Can be selected from cleaning directives and transmission hold.
Communication capability RS-485   Two-wire input/output insulation type (not insulated from transmission output)
Ambient temperature -20˚C to 55˚C (without freezing)
