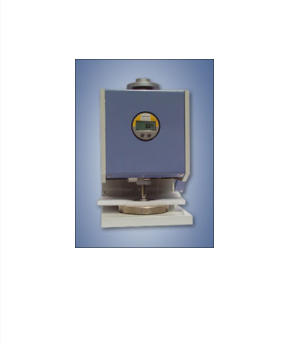

Thickness Gauge to determine the material thickness of all non-woven fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, etc.
According to international standards DIN, EN and ISO
Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa und 1 kPa)
For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)
For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)
Rigid housing frame
Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability
Switch-selectable measuring units mm / inch
USB data output
Resolution 0.01 mm - standard, 0.001 mm - optional
(0.001 mm is standard for D-2000-P, D-2000-F)
Feeler movement manual by plunger
Includes Calibration Certificate
Optional software for data transfer and analysis - Part No. SW-50
