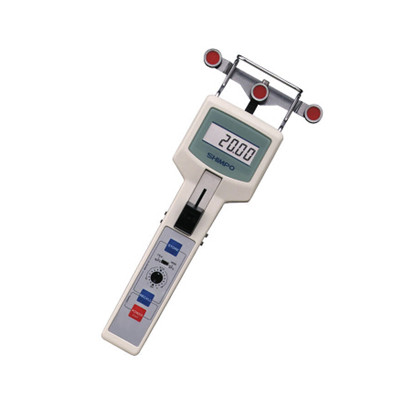

Thiết bị đo lực căng dây Shimpo DTMX-0.2C, DTMX-0.5C, DTMX-1C, DTMX-2C

Mã sản phẩm: |

Thương hiệu:

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị đo lực căng dây Shimpo DTMX-0.2C, DTMX-0.5C, DTMX-1C, DTMX-2C

Yêu cầu giá tốt:

Zalo/tell: 0984843683, Email: hien@ttech.vn

Thông tin sản phẩm

Thiết bị đo lực căng dây Shimpo DTMX-0.2C, DTMX-0.5C, DTMX-1C, DTMX-2C

Shimpo Digital Tension Meter DTMX Series Ordering Guide:


Model		DTMX-0.2C	DTMX-0.5C	DTMX-1C	DTMX-2C
Model		DTMB-0.2C	DTMB-0.5C	DTMB-1C	DTMB-2C
Capacity		196.1cN(200.0gf)	490.3cN(500.0gf)	981cN(1000gf)	1961cN(2000gf)
Measuring range		0.0 - 200.0ï½ƒN	1.0 - 500.0cN	100 - 1000cN	200 - 2000cN
String(TEX)		1000deniel or smaller(or φ0.15 dia. or smaller)	φ0.05 - φ0.25	φ0.1 - φ0.4	φ0.3 - φ0.7
Steel(WIRE)		φ0.08 or smaller	φ0.01 - φ0.15	φ0.05 - φ0.25	φ0.15 - φ0.4
Copper		φ0.15 or smaller	φ0.05 - φ0.25	φ0.1 - φ0.4	φ0.3 - φ0.6
Roller span		38mm
Accuracy		±1%R.C.		±1.5%R.C.
Update time		0.5,1,2,4 sec. Selectable
Memory		DTMX…Last,Max.,Min.,Peak 100 readings
Memory		DTMB…Last,Max.,Min.,Peak readings
Max.speed		1000m/min.
Field adjustment		Max.±10.5% of reading/notch ±1.5%
Display		4 digit large LCD (Character height 11.5mm)
Output signal (DTMX only)	Analog output	0 - 1 Vdc (0 - Ratings), (D/A output, Transfer time Approx. 16m sec 3000 bit)
Output signal (DTMX only)	Digital output	RS-232C or Digimatic output selectable
Dimensions		76mm(W)×48mm(D)×274mm(L)
Wire guide		65mm
Weight		Approx.650g
Power		AA×4(Alkaline battery:Continuous 20 hours.),AC Adapter(Option)
Operating temperature		0 - 45â„ƒ 90%RH or less
Accessories		Alkaline batteries (4 pcs.) Carrying case(1 pce.)
Major applications		- Elastic string - Gold & Silver metal string of φ0.15 or smaller - Coated optical fibre - Synthetic fibre wire winder	- Optical fibre - Optical fibre binder - Corbon fobre - Copper wire binder - Steel wire binder	- Alamedo fibre - Film for capacitor - Food film Brass wire of up to φ0.3 - Copper coil - Magnetic tape	- Carbon fibre - Steel wire of up to φ0.1 - Copper filament of(W20×0.1t.) - Tire cable

Notes: DTMX series have the data connection cable, while DTMB is not.


Model		DTMX-2.5C	DTMX-5C	DTMX-10C	DTMX-20C
Model		DTMB-2.5C	DTMB-5C	DTMB-10C	DTMB-20C
Capacity		2452cN(2500gf)	4903cN(5000gf)	9.81daN(10.00kgf)	19.61daN(20.00kgf)
Measuring range		250 - 2500cN	500 - 5000cN	1.00 - 10.00daN	2.00 - 20.00daN
String(TEX)		φ0.3 - φ0.7	φ0.5 - φ1.2	φ0.7 - φ1.4	Customer's wires (Custom Calibration)
Steel(WIRE)		φ0.15 - φ0.4	φ0.3 - φ0.7	φ0.4 - φ0.8
Copper		φ0.3 - φ0.6	φ0.4 - φ1.0	φ0.7 - φ1.2
Roller span		100mm			150mm- 200mm
Accuracy		±1.5%R.C.
Update time		0.5,1,2,4 sec. Selectable
Memory		DTMX…Last,Max.,Min.,Peak 100 readings
Memory		DTMB…Last,Max.,Min.,Peak readings
Max.speed		1000m/min.
Field adjustment		Max.±10.5% of reading/notch ±1.5%
Display		4 digit large LCD (Character height 11.5mm)
Output signal (DTMX only)	Analog output	0 - 1 Vdc (0 - Ratings), (D/A output, Transfer time Approx. 16m sec 3000 bit)
Output signal (DTMX only)	Digital output	RS-232C or Digimatic output selectable
Dimensions		76mm(W)×48mm(D)×274mm(L)
Wire guide		65mm
Weight		Approx.700g
Power		AA×4(Alkaline battery:Continuous 20 hours.),AC Adapter(Option)
Operating temperature		0 - 45â„ƒ 90%RH or less
Accessories		Alkaline batteries (4 pcs.) Carrying case(1 pce.)
Major applications		- Material of small bending angle. - Steel wire for OA(Copying machine printer, etc)	- Carbon fibre - Roll scale(100mm width×0.05thick)	- Tungsten wire of φ0.8mm or smaller - Flat and timing belt of up to 15mm width	- Customer's wires

Our standard calibration wires are as follows: Thread: Nylon string, Steel wire: SUS304 (Hardness Hv531 to 541), Copper wire: Tinning soft copper wire (Hardness Hv69 to 82) If measurement objects are subject to vibration, or the material may change, such as with rubber,
